Detail Information
Grade:	7000 Series	Diameter:	5mm-2500mm Or As The Customer’s Request
Length:	10mm-12000mm Or As Required	Technique:	EXTRUDED
Al (Min):	96.9%	Application:	Construction
Tolerance:	±1%	Yield (≥ MPa):	275
High Light:	320mm 7075 aluminum flat bar , 320mm 7075 aluminum flat bar , 320mm ali flat bar

Product Description

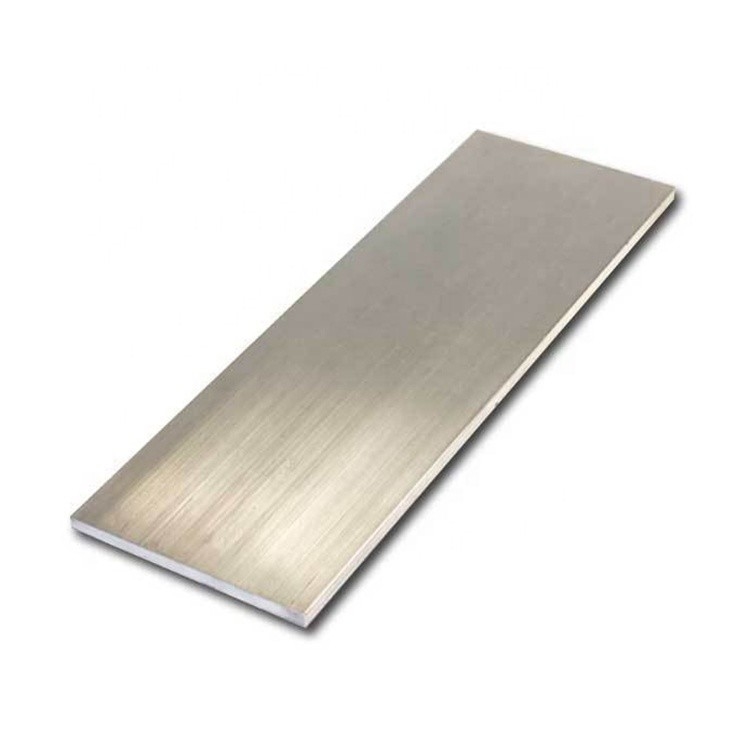

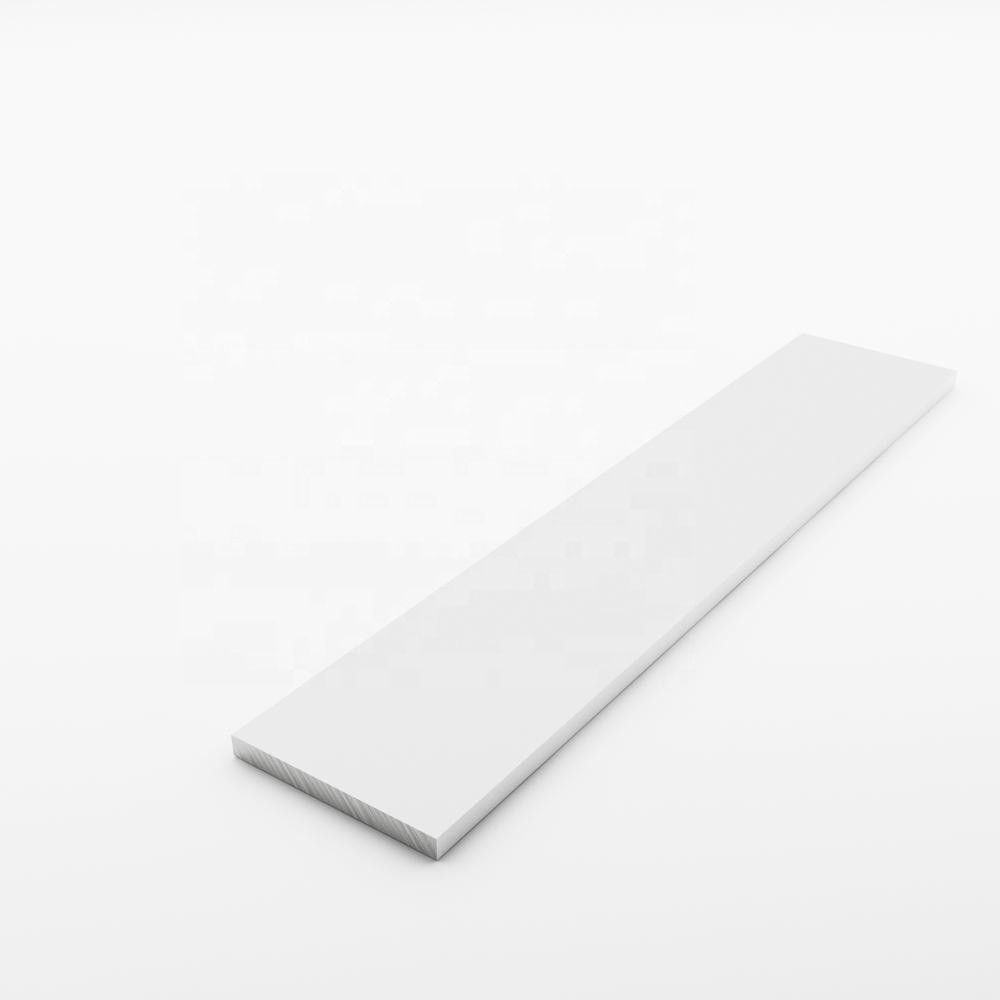

7075 Deep process Corrosion-resistant 320 mm Dimensions Aluminum Flat Bar for Construction

Description

Mechanical Property
ALUMINUM ALLOY	Grade	Normal Temper	Temper	Tensile Strength N/mm²	Yield Strength N/mm²	Elongation%		Brinell Hardness HB
ALUMINUM ALLOY	Grade	Normal Temper	Temper	Tensile Strength N/mm²	Yield Strength N/mm²	Plate	Bar	Brinell Hardness HB
1XXX	1050	O,H112,H	O	78	34	40	-	20
1XXX	1060	O,H112,H	O	70	30	43	-	19
Al-Cu (2XXX)	2019	O,T3,T4,T6,T8	T851	450	350	10	-	-
Al-Cu (2XXX)	2024	O,T4	T4	470	325	20	17	120
Al-Mn (3XXX)	3003	O,H112,H	O	110	40	30	37	28
Al-Mn (3XXX)	3004	O,H112,H	O	180	70	20	22	45
Al-Si (4XXX)	4032	O,T6,T62	T6	380	315	-	9	120
Al-Mg (5XXX)	5052	O,H112,H	H34	260	215	10	12	68
Al-Mg (5XXX)	5083	O,H112,H	O	290	145	-	20	-
Al-Mg-Si (6XXX)	6061	O,T4,T6,T8	T6	310	275	12	15	95
Al-Mg-Si (6XXX)	6063	O,T1,T5,T6,T8	T5	185	145	12	-	60
Al-Zn-Mg (7XXX)	7003	T5	T5	315	255	15	-	85
Al-Zn-Mg (7XXX)	7075	O,T6	T6	570	505	11	9	150

Aluminium Rod / Bar
1	Production Standard	ASTM, JIS, GB, etc
2	Material	1000 2000 3000 4000 5000 6000 7000 8000
3	Diameter	5mm-2500mm or as the customer’s request
4	Length	10mm-12000mm or as the customer’s request
5	Surface	Coated, Embossed,Brushed, polished, Anodized,etc
6	OEM Service	Perforated, Cutting special size, Doing flatness, Surface treatment,etc
7	Payterm	Ex-work, FOB, CIF , CFR, etc
8	Payment	T/T, L/C, Western Union, etc
9	Delivery Time	Within 3 days for our stock size,15-20days for our production
10	Package	Export standard package: bundled wooden box, suit for all kinds of transport, or be required
11	MOQ	200kg
12	Sample	Free and available
13	Quality	Certificate of Test,JB/T9001C,ISO9001,SGS,TVE
14	Export To	Ireland,Singapore,Indonesia,Ukraine,SaudiArabia,Spain,Canada,USA,Brazil,Thailand,Korea, India,Egypt,Kuwait,Oman,Viet Nam,South Africa,Dubai,England,Holland,Russia,etc
15	Application	Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc

The ultimate goal of the melting and casting process is to produce aluminum rods that meet the requirements, and to produce these

aluminum rods, it must go through the process: smelting → casting → saw rod → aluminum rod homogenization → cooling, washing rod →
aluminum rod into the warehouse. Extrusion process: Preparation before pressing → Extrusion → Stretching and straightening →
Sawing finished product → Framing and trimming. Aluminum bar can be used in aviation,aircraft construction,rivet, trailer wheel,the propeller components,metallic building material, forging material,welding material,etc.

Construction 320mm 7075 Aluminum Flat Bar Corrosion Resistant 0

Product advantages

Aluminum (Al) is a kind of light metal, and its compounds are widely distributed in nature. The resource of aluminum in the
earth's crust is about 40-50 billion tons, second only to oxygen and silicon, ranking third. Among the metal varieties, it is the first type of metal. Aluminum has special chemical and physical properties. It is not only light in weight, strong in texture, but also has good ductility, electrical conductivity, thermal conductivity, heat resistance and nuclear radiation resistance. It is an
important basic raw material for the development of the national economy.

COMPANY INTRODUCTION

Jiangsu Mingtai AL Industry Co., Ltd. was developed into a group enterprise for many years, which integrates research, design, production, sales, technical services of aluminium profiles for building, industry products, doors & windows, curtain wall, annual production capacity of more than 80,000 tons. Customized aluminum specifications in various fields, involving aluminum products and engineering solutions from building doors & windows, curtain wall, transportation, sports equipment, electronic appliances, medical equipment, sanitary ware, aluminum household etc ..

The company totally takes up area of over 100000sqm, owns two production bases, and possesses globally-advanced manufacturing equipment for aluminium profiles, which are intelligent extrusion equipment, automatic production line for oxidation and electrophoresis, powder coating line, wood grain line, heat- insulating line, mold processing center, stereoscopic warehouse, and the independent testing center and r&d center equipped with advanced inspection and testing equipment. The company has been strictly in accordance with the National Metrology Assurance System and the national energy-saving certification system for production management and quality control.

With powerful R&D ability and the pursuit of excellent quality, after more than 20 years of market layout, TGAL product sales cover more than 20 provinces nationwide, and exported to more than 30 countries and regions in the world.

We always adhere to concept of "choose one thing for whole life, just to make excellent aluminum" concept, in line with the mission of improving and enhancing human living environment, set up the international model of the industry.

FAQ

Q: Are you manufacture or trading company?
A: We are manufacture ,we have our own factory

Q: Can you provide samples?
A: of course, we can send to you our free sample for check the quality

Q: Do you accept any quality test from a third part before out of factory?
A: Of course, we accept such as UL.ITS,TUV,SGS,WALTEK and so on

Q: Do you have QC team of the aluminum sheet?
A: Yeah,sure,our QC team is very important,they will keep the quality control for our products

Q: What is you acceptable price term?
A: Ex-work/FOB/CIF/CFR/DDU/CPT

Q: How about the delivery time ?
A: It is based on the order,normally within 15days after receiving your advance payment

Tag:

Product Details:
Place of Origin:	made in china
Brand Name:	mingtai
Certification:	iso sgs
Model Number:	7000 series
Payment & Shipping Terms:
Minimum Order Quantity:	1 ton
Price:	2900-3300 usd per ton
Packaging Details:	standard package or as requirement
Delivery Time:	5-15days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	3000 tons per year

Construction 320mm 7075 Aluminum Flat Bar Corrosion Resistant
