Home ProductsAluminium Flat BarMilitary 6060/6061 HB 120 Aluminium Flat Bar 100mm
Military 6060/6061 HB 120 Aluminium Flat Bar 100mm
Military 6060/6061 HB 120 Aluminium Flat Bar 100mm Military 6060/6061 HB 120 Aluminium Flat Bar 100mm

Military 6060/6061 HB 120 Aluminium Flat Bar 100mm

Product Details:
Place of Origin: made in china
Brand Name: mingtai
Certification: iso sgs
Model Number: 6060
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: 2900-3300 usd per ton
Packaging Details: standard package or as requirement
Delivery Time: 5-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 tons per year
Contact Now

Detail Information
Grade: 6060 Thickness: 100 Mm, 0.5-200mm
Length: 1000--6000mm Shape: Rectangular
Hardness: HB90-120 Surface Treatment: Mill Finish
Application: Aviation Construction Manufacturing Tolerance: ±1%
High Light:

6060/6061 HB120 Aluminium Flat Bar

,

Aluminium Flat Bar 100mm

,

4 inch aluminum flat bar 6060/6061

Product Description

6060/6061 HB 120 smooth Rectangular finish aluminum flat bar for Military industrial



Description



The ultimate goal of the melting and casting process is to produce aluminum rods that meet the requirements, and to produce these
aluminum rods, it must go through the process: smelting → casting → saw rod → aluminum rod homogenization → cooling, washing rod →
aluminum rod into the warehouse. Extrusion process: Preparation before pressing → Extrusion → Stretching and straightening →
Sawing finished product → Framing and trimming.
Aluminum bar can be used in aviation,aircraft construction,rivet,
trailer wheel,the propeller components,metallic building material,
forging material,welding material,etc.

SPECIFICATIONS FOR ALUMINUM FLAT BAR
Item name

Aluminium flat bar
Grade
6061
Standard
GB/T3190-1996; GB/T3191-1998,ASTM B221M-05A,JIS H4040-2006,etc
Diameter
Length:5-350mm
Width:5-350mm
Length
As required
Surface
Mill-finished,polished,anodizing,brushing,sand blasting,powder coating,etc
Price term
Ex-Work,FOB,CFR,CIF,etc
Payment term
TT,L/C,Western Union,Etc
Package
Wooden case or as required



MECHANICAL PROPERTIES
Grade
Temper
TENSILE
STRENGTH(MPA)
YIELD STRENGTH(MPA)
ELONGATION(%)
6061
T4
205
110
18
T6
290
240
10

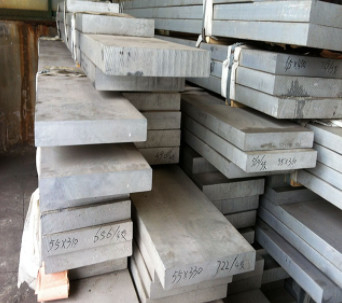

Military 6060/6061 HB 120 Aluminium Flat Bar 100mm 0

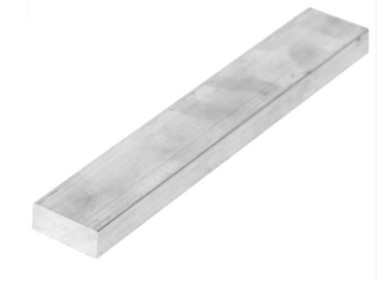

Military 6060/6061 HB 120 Aluminium Flat Bar 100mm 1

Product advantages

Aluminum (Al) is a kind of light metal, and its compounds are widely distributed in nature. The resource of aluminum in the
earth's crust is about 40-50 billion tons, second only to oxygen and silicon, ranking third. Among the metal varieties, it is the first type of metal. Aluminum has special chemical and physical properties. It is not only light in weight, strong in texture, but also has good ductility, electrical conductivity, thermal conductivity, heat resistance and nuclear radiation resistance. It is an
important basic raw material for the development of the national economy.


COMPANY INTRODUCTION



Wuxi Mingtai AL Industry Co., Ltd. was developed into a group enterprise for many years, which integrates research, design, production, sales, technical services of aluminium profiles for building, industry products, doors & windows, curtain wall, annual production capacity of more than 80,000 tons. Customized aluminum specifications in various fields, involving aluminum products and engineering solutions from building doors & windows, curtain wall, transportation, sports equipment, electronic appliances, medical equipment, sanitary ware, aluminum household etc ..
The company totally takes up area of ​​over 100000sqm, owns two production bases, and possesses globally-advanced manufacturing equipment for aluminium profiles, which are intelligent extrusion equipment, automatic production line for oxidation and electrophoresis, powder coating line, wood grain line, heat- insulating line, mold processing center, stereoscopic warehouse, and the independent testing center and r&d center equipped with advanced inspection and testing equipment. The company has been strictly in accordance with the National Metrology Assurance System and the national energy-saving certification system for production management and quality control.

With powerful R&D ability and the pursuit of excellent quality, after more than 20 years of market layout, TGAL product sales cover more than 20 provinces nationwide, and exported to more than 30 countries and regions in the world.

We always adhere to concept of "choose one thing for whole life, just to make excellent aluminum" concept, in line with the mission of improving and enhancing human living environment, set up the international model of the industry.
Military 6060/6061 HB 120 Aluminium Flat Bar 100mm 2

FAQ

Q:Are you manufacture or trading company?
A:We are manufacture ,we have our own factory


Q:Can you provide samples?
A:of course, we can send to you our free sample for check the quality


Q:Do you accept any quality test from a third part before out of factory?
A:Of course, we accept such as UL.ITS,TUV,SGS,WALTEK and so on

Q: Do you have QC team of the aluminum sheet?
A:Yeah,sure,our QC team is very important,they will keep the quality control for our products

Q:What is you acceptable price term?
A: Ex-work/FOB/CIF/CFR/DDU/CPT

Q:How about the delivery time ?
A:It is based on the order,normally within 15days after receiving your advance payment
