Product Description

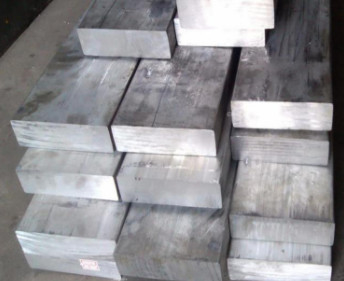

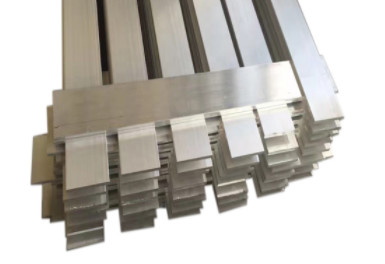

2024 t6 Mill Finish Rectangular Aluminium flat bar for Machinery industry & Aircraft Structure
Description
The ultimate goal of the melting and casting process is to produce aluminum rods that meet the requirements, and to produce these
aluminum rods, it must go through the process: smelting → casting → saw rod → aluminum rod homogenization → cooling, washing rod →
aluminum rod into the warehouse. Extrusion process: Preparation before pressing → Extrusion → Stretching and straightening →
Sawing finished product → Framing and trimming.
Aluminum bar can be used in aviation,aircraft construction,rivet,
trailer wheel,the propeller components,metallic building material,
forging material,welding material,etc.
| Mechanical Property |
| Alloy |
Temper |
Wall Thickness |
Tensile Strength(Mpa) |
Yield Strength(Mpa) |
Elongation |
| 2014 |
0 |
- |
<245 |
<135 |
10 |
| T4 |
<25 |
370 |
230 |
10 |
| >25-75 |
410 |
270 |
- |
| T6 |
<25 |
415 |
370 |
5 |
| <25-75 |
460 |
415 |
- |
| 2017 |
0 |
<3.2 |
<220 |
<140 |
11 |
| >3.2-12 |
<225 |
<145 |
11 |
| T4 |
0 |
390 |
245 |
13 |
| 2024 |
0 |
- |
<250 |
<150 |
10 |
| T3 |
<15 |
395 |
290 |
6 |
| T351 |
>15-50 |
420 |
290 |
- |
| 6061 |
T4 |
<25 |
180 |
110 |
13 |
| T5 |
<16 |
240 |
205 |
7 |
| T6 |
<5 |
260 |
240 |
7 |
| >5-25 |
260 |
240 |
8 |
| 7075 |
T6 |
<25 |
530 |
460 |
4 |
| >25-60 |
540 |
470 |
- |
|
Aluminum (Al) is a kind of light metal, and its compounds are widely distributed in nature. The resource of aluminum in the
earth's crust is about 40-50 billion tons, second only to oxygen and silicon, ranking third. Among the metal varieties, it is the first type of metal. Aluminum has special chemical and physical properties. It is not only light in weight, strong in texture, but also has good ductility, electrical conductivity, thermal conductivity, heat resistance and nuclear radiation resistance. It is an
important basic raw material for the development of the national economy.
Wuxi Mingtai AL Industry Co., Ltd. was developed into a group enterprise for many years, which integrates research, design, production, sales, technical services of aluminium profiles for building, industry products, doors & windows, curtain wall, annual production capacity of more than 80,000 tons. Customized aluminum specifications in various fields, involving aluminum products and engineering solutions from building doors & windows, curtain wall, transportation, sports equipment, electronic appliances, medical equipment, sanitary ware, aluminum household etc ..
The company totally takes up area of over 100000sqm, owns two production bases, and possesses globally-advanced manufacturing equipment for aluminium profiles, which are intelligent extrusion equipment, automatic production line for oxidation and electrophoresis, powder coating line, wood grain line, heat- insulating line, mold processing center, stereoscopic warehouse, and the independent testing center and r&d center equipped with advanced inspection and testing equipment. The company has been strictly in accordance with the National Metrology Assurance System and the national energy-saving certification system for production management and quality control.
With powerful R&D ability and the pursuit of excellent quality, after more than 20 years of market layout, TGAL product sales cover more than 20 provinces nationwide, and exported to more than 30 countries and regions in the world.
We always adhere to concept of "choose one thing for whole life, just to make excellent aluminum" concept, in line with the mission of improving and enhancing human living environment, set up the international model of the industry.
Q:Are you manufacture or trading company?
A:We are manufacture ,we have our own factory
Q:Can you provide samples?
A:of course, we can send to you our free sample for check the quality
Q:Do you accept any quality test from a third part before out of factory?
A:Of course, we accept such as UL.ITS,TUV,SGS,WALTEK and so on
Q: Do you have QC team of the aluminum sheet?
A:Yeah,sure,our QC team is very important,they will keep the quality control for our products
Q:What is you acceptable price term?
A: Ex-work/FOB/CIF/CFR/DDU/CPT
Q:How about the delivery time ?
A:It is based on the order,normally within 15days after receiving your advance payment
